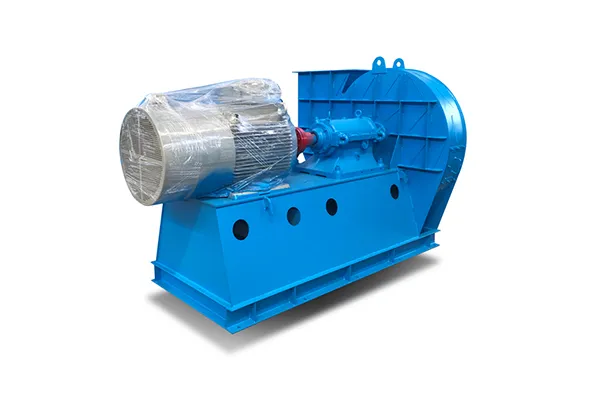

6-05 series centrifugal fan & induced draft fan

6-05 series centrifugal fan & induced draft fan

model:4#-20#

Rotation speed:≤3000rpm

Pressure range:954-28000Pa

Flow range:1090-230000m³/h

Gas temperature:0-250°C

If you can't find the datas you need, pls send us your performance requirements

we will provide you customized design service.

description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Overview

6-05 type centrifugal fan, with moderate pressure, low noise, power saving, is applicable to conveying normal air, high-temperature air, combustible gas and corrosive gas, Gas mixed with a little impurity, light Particle materials/ Powder materials/ Fragment materials/Fiber materials. It is mainly used in Ventilating, materials drying, cooling and heat dissipation, air purification and industrial waste gas treatment, boiler air supply and exhaust, industrial waste heat recovery device, etc.

Features

1. Can output higher discharge pressure, in the same time providing larger air flow volume, low noise. Can work in high temperature condition stably.
2. Can flexibly adjust fan’s volume and pressure in running by air damper. Can also adjust fan’s pressure and volume by changing the fan speed via matching variable frequency motor.
3. In the case of using system base, so easy for installation, no need of professional direction.
4. The motor load can be automatically reduced when airflow resistance is increasing, to prevent motor from destroying.
5. Customizing design according to customer’s performance requirements, and optimizing by CFD technology, energy consumption lower than same fans.
6. Fitting tightly of parts, good sealing, ensuring no reducing of output pressure.
7. Impeller passed high standard dynamic balancing, ensuring stable running of fan.
8. Running test and vibration value test for fans after finishing manufacturing, ensuring running reliably. Various optional components for your selection.

Specifications

Application

Temperature

Normal temperature air

Hot air

Air composition

Clean air

Dusty air

Corrosive gas

Powder materials

Light particle materials

Performance

Impeller diameter

400-3000

mm

Speed of main shaft

≤4000

rpm

Pressure range

542.3-9112

Pa

Flow range

884-321950

m3/h

Structure

Blade

Backward

Impeller support

SWSI (Single Width, Single Inlet), Impeller overhung.

Drivetrain

Coupling drivetrain

Can assign

Lubrication

Oil bath lubrication

Can assign

Bearing cooling

Air cooling or Circulating Water cooling

System
configuration

Motor

SIEMENS, ABB, SIMO, LA…

Can assign

Impeller

Carbon steel

Impeller cone (Air Inlet)

Carbon steel

Case

Carbon steel

Air damper

Carbon steel

Main shaft

High-strength carbon structural steel

Bearing

FAG, SKF, ZWZ, C&U…

Bearing housing

Cast iron



Drivetrain

Coupling

Can assign

Foundation bolt





Optional
components

System base frame, Protective screening,
Silencer, Inlet & Outlet pipeline compensator,
Inlet & Outlet flange, Damper, Electric actuator,
Shock isolator, Diaphragm coupling, Fluid coupling,
Motor rain cover, Temperature sensor, Vibrating sensor,
Soft starter, Inverter, Special Electrical Motor,
System monitoring Instrument,
Lube system, Overhead lube tank.
