High-precision CNC spinning air inlet manufacturing process

As a key component of the fan, the performance of the air inlet directly affects the efficiency of the fan. The traditional "mold extrusion + split welding" process is cumbersome, inefficient, and difficult to meet the precision requirements.

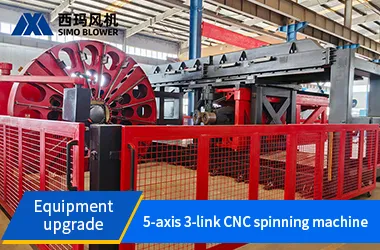

In order to improve quality and efficiency, our company introduced a 5-axis 3-linkage CNC spinning machine to achieve one-time forming of the air inlet, including flange indexing drilling, axial flow fan duct and air collector spinning integrated processing.

Advantages:
1.High line accuracy: error ≤1-2mm, better efficiency;
2.More beautiful appearance: no extra welds, better gap control, in line with national standards;
3.Higher efficiency: simplified processing flow, reduced labor intensity, and improved production efficiency.
