4-09 series large flow centrifugal ventilation fan

Home > Products > Performance > Large Air Volume Centrifugal Fan > 4-09 series large flow centrifugal ventilation fan

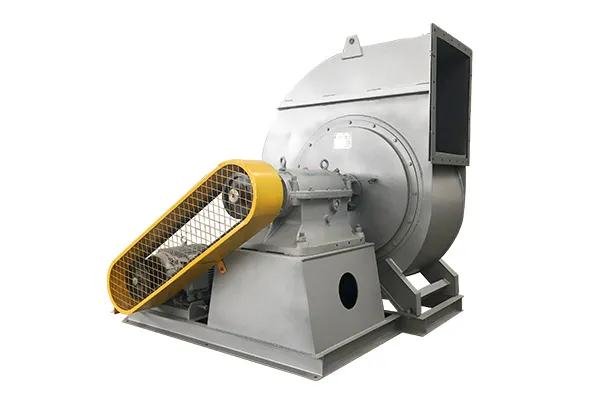

4-09 series large flow centrifugal ventilation fan

model：2.5#-20#

Rotation speed：≤4000rpm

Pressure range：778-6761Pa

Flow range：1199-435813m³/h

Gas temperature：0-250°C

If you can't find the datas you need, pls send us your performance requirements

we will provide you customized design service.

4-09 series large flow centrifugal ventilation fan

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Overview

4-09 series large capacity centrifugal fans are suitable for conveying clean air at normal temperature or light materials, and the most commonly used in supply air of industrial furnace, delivery of lightweight particles, coal powder/ particle material/ powder material/ fragment materials/ fiber materials, materials drying and cooling, ventilation and fume exhaust, etc.

Features

1. On the condition of meeting the pressure requirements, can output larger air flow volume, low noise.
2. Can set fan speed by matching different diameter of belt pulley, making the fan running in the peak efficiency, reducing energy waste.
3. We provide motor slide rail for tensioning the belt easily, reducing the energy loss caused by belt slack.
4. The motor load can be automatically reduced when airflow resistance increasing, to prevent motor from destroying.
5. In the case of using system base, so easy for installation on site, no need of professionals’ direction.
6. Running test and vibration value test for fans after finishing manufacturing, ensuring running reliably.

Specifications

Application	Temperature	Normal temperature air
	Air composition	Clean air
	Air composition	Light particle materials
Performance	Impeller diameter	250-1000	mm
	Speed of main shaft	≤4000	rpm
	Pressure range	778-6761	Pa
	Flow range	1199-435813	m3/h
Structure	Blade	Backward
	Impeller support	SWSI (Single Width, Single Inlet), Impeller overhung.
	Drivetrain	V-belt drivetrain	Can assign
System configuration	Motor	SIEMENS, ABB, SIMO, LA…	Can assign
	Impeller	Carbon steel
	Impeller cone (Air Inlet)	Carbon steel
	Case	Carbon steel
	Air damper	Carbon steel
	Foundation bolt	Carbon steel
Optional components	System base frame, Protective screening, Silencer, Inlet Outlet pipeline compensator, Inlet Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument.
