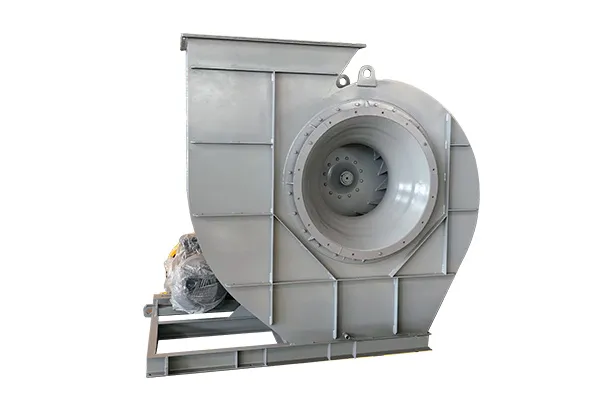

4-14A Industrial fan

Email: info@simoblower.com

Tel: 008618003807607

Whatsapp: 8615225984795

4-14A Industrial fan

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Overview

4-14 series fan,with large air capacity, low noise, can be used for conveying clean gas, dusty gas, corrosive gas and flammable gas at normal temperature. They are widely used in : Building ventilating, Materials ventilating and drying, air purification and industrial waste gas treatment, Industrial dust collector and Air purification of hazardous working environment (Paper making production line, Electrolytic aluminium production line, Textile mill….),boiler and brick kiln blowing air, all kinds of gas transmission, delivery of Particle material/ Powder material/ Fragment materials/Fiber materials, etc.

Features

1. On the condition of meeting the pressure requirements, can output larger air flow volume, low noise.
2. Small volume, compact structure, can be installed in narrow space.
3. Easy for installation, don’t need professionals to direct.
4. High efficiency of energy transmission, motor’s energy is completely and directly used for impeller, no energy consumption in transmission process.
5. Small starting current, don’t need motor soft start device for below 7.5kw power.
6. Selecting high efficiency energy saving motor of Chinese leading motor manufacturer (or customer required), reliable quality, low energy consumption.

Specifications

Application	Temperature	Normal temperature air
	Air composition	Clean air
		Dusty air
		Corrosive gas
		Combustible gas
		Powder materials
		Light particle materials
Performance	Impeller diameter	400-2200	mm
	Speed of main shaft	≤4000	rpm
	Pressure range	1476-7300	Pa
	Flow range	2749-431290	m3/h
Structure	Blade	Backward
	Impeller support	SWSI (Single Width, Single Inlet), Impeller overhung.
	Drivetrain	Direct drivetrain	Can assign
System configuration	Motor	SIEMENS, ABB, SIMO, LA…	Can assign
	Impeller	Carbon steel
	Impeller cone (Air Inlet)	Carbon steel
	Case	Carbon steel
	Air damper	Carbon steel
	Foundation bolt	Carbon steel
Optional components	System base frame, Protective screening, Silencer, Inlet & Outlet pipeline compensator, Inlet & Outlet flange, Motor rain cover, Special Electrical Motor.
