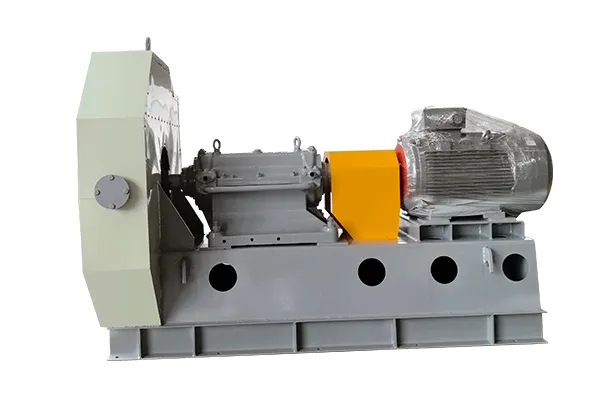

8-09 series centrifugal ventilation fan
8-09 series centrifugal ventilation fan
The 8-09 high-pressure small-flow fan is specially designed for applications requiring high pressure. Under the premise of ensuring a certain air volume, the full pressure can meet high-pressure requirements. It is mainly used for blasting and other forced air supply in forging furnaces. It can also be used for exhausting or supplying air through hard pipes in tunnels. Fans are divided into ordinary type, explosion-proof type, anti-corrosion type and high temperature resistant type.
1.It can output very high outlet pressure and work at higher medium temperatures. It is suitable for any industrial occasion where high-pressure & high-temperature gases need to be transported.
2.When using the overall bracket, the installation is very simple and basically does not require the support of professional technicians.
3.The bearing box has reserved installation positions for temperature and vibration sensors, so that the fan operation monitoring device can be easily installed.
4.When the air flow resistance increases, the motor load will automatically reduce and the motor will not be burned.
5.Customized design according to customer performance requirements and optimized by CFD technology, the energy consumption is lower than similar models.
6.The components are closely matched and the sealing performance is good to ensure that the output pressure will not be reduced.
7.The impeller has undergone high-standard dynamic balance correction to ensure stable operation of the fan.
8.After production is completed, the operation test and vibration value detection are carried out, and the operation is reliable.
9.There are a variety of optional accessories to choose from.
|
Series no. |
8-09 series |
Feature selection |
|||||||
|
|
|
Normal |
High temperature |
Remarks |
|||||
|
Performance |
Impeller diameter |
400-1500mm |
|
||||||
|
|
Rotation speed |
≤3000rpm |
|
||||||
|
|
Pressure range |
3958-13916Pa |
|
||||||
|
|
Flow range |
302-7968 m/h |
|
||||||
|
Structure |
Blade type |
Forward |
|
||||||
|
|
Impeller support |
SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type |
|
||||||
|
|
Lubrication method |
Oil bath lubrication, grease lubrication, lubrication oil station |
Can be specified |
||||||
|
|
Cooling method |
Air cooling, Water cooling, Oil cooling |
Can be specified |
||||||
|
|
Driven mode |
Direct driven, Coupling driven, Belt driven |
Can be specified |
||||||
|
Gas composition |
Gas temperature |
Normal |
Customer request |
Customer request |
≥250℃ |
Customer request |
|
||
|
|
Clean gas |
Corrosive gas |
Particulate dust |
High temperature gas |
Flammable gas, explosive gas |
|
|||
|
System configuration |
Motor brand |
Chinese famous brand, ABB, Siemens, WEG etc |
Can be specified |
||||||
|
|
Impeller |
High quality carbon steel |
FRP, Stainless steel, Rubber Lining |
Wear-resistant layer or wear-resistant liner, ceramic patch |
High temperature high quality alloy steel |
FRP, Aluminum alloy |
Can be specified |
||
|
|
Air inlet cone |
High quality carbon steel |
FRP, Stainless steel, Rubber Lining |
High quality carbon steel |
High quality carbon steel |
High quality carbon steel |
Can be specified |
||
|
|
Casing |
High quality carbon steel |
FRP, Stainless steel, Rubber Lining |
High quality carbon steel |
High quality carbon steel |
High quality carbon steel |
Can be specified |
||
|
|
Air damper |
High quality carbon steel |
FRP, Stainless steel, Rubber Lining |
High quality carbon steel |
High quality carbon steel |
High quality carbon steel |
Can be specified |
||
|
|
Main shaft |
High strength carbon steel, Alloy structural steel |
Can be specified |
||||||
|
|
Bearing |
ZWZ, SKF, FAG, NSK |
Can be specified |
||||||
|
|
Bearing housing |
Cast iron |
|
||||||
|
|
Foundation bolts |
GB799-1988 |
|
||||||
|
Option parts |
System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument. |
||||||||
