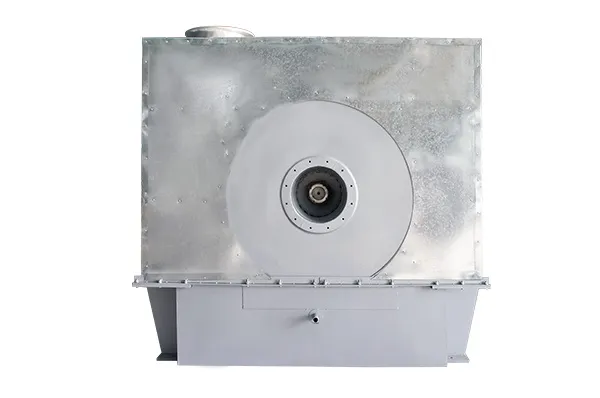

9-03A Industrial Fan

9-03 fan is mainly used for conveying high pressure conveying clean/combustible/corrosive gas at normal temperature, or lightweight powder/debris/short fiber materials, forced ventilation, forced cooling, smelting furnace and foundry furnace, pressurization and decompression seal of industrial equipment etc.

1. Can output high discharge pressure, applicable to any industry condition that needs to convey high pressure & normal air.
2. Small volume, compact structure, can be installed in narrow space.
3. Easy for installation, don’t need professionals to direct.
4. High efficiency of energy transmission, motor’s energy is completely and directly used for impeller, no energy consumption in transmission process.
5. With Small starting current, don’t need motor soft start device for below 7.5kw power.
6. Select high efficiency energy saving motor of Chinese leading motor manufacturer( or customer required), reliable quality, low energy consumption.
7. Adopt high quality carbon steel manufacturing, or stainless steel and other metal materials according to customers’ requirements.
8. Impeller passed high standard dynamic balancing, ensuring stable running of fan.
9. Running test and vibration value test for fans are done after finishing manufacturing, ensuring reliable running

Application	Temperature	Normal temperature air
	Air composition	Clean air
		Corrosive gas
		Combustible gas
		Powder materials
Performance	Impeller diameter	400-1800	mm
	Speed of main shaft	≤4000	rpm
	Pressure range	1581-10587	Pa
	Flow range	90.6-61297	m3/h
Structure	Blade	Forward
	Impeller support	SWSI (Single Width, Single Inlet), Impeller overhung.
	Drivetrain	Direct drivetrain	Can assign
System configuration	Motor	SIEMENS, ABB, SIMO, LA…	Can assign
	Impeller	Carbon steel
	Impeller cone (Air Inlet)	Carbon steel
	Case	Carbon steel
	Air damper	Carbon steel
	Foundation bolt
Optional components	System base frame, Protective screening, Silencer, Inlet & Outlet pipeline compensator, Inlet & Outlet flange, Motor rain cover, Special Electrical Motor,
