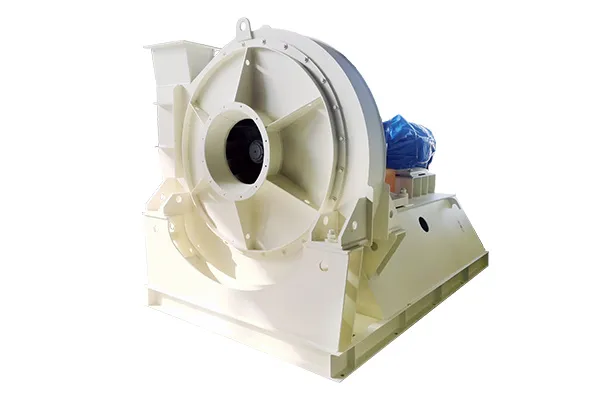

9-10D Industrial Blowers And Fans

Home > Products > Performance > High Pressure Centrifugal Fan > 9-10D Industrial Blowers And Fans

9-10D Industrial Blowers And Fans

Email: info@simoblower.com

Tel: 008618003807607

Whatsapp: 8615225984795

9-10D Industrial Blowers And Fans

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Overview

9-08/9-10 fan, can output high gas pressure, and is suitable for conveying clean/combustible/corrosive/a little impurity gas at normal temperature, or lightweight powder/debris/short fiber materials. It is most commonly used in forced ventilation, fast dry, fast cooling and heat dissipation, cement production line of grate cooler cooling, Clinker cooler system, Circulating fluidized bed(CFB) system, air purification and industrial waste gas treatment, flue gas desulfurization, industrial boiler or incinerator blowing air/inducing air/primary air/secondary air, ventilating of large mill system, industrial waste heat recovery device, smelting furnace and foundry furnace, combustion of blast furnace, blast furnace coal injection, coal gas boosting and conveying or pressurization and decompression seal of industrial equipment, etc.The number of this type of fans is largest that is used in industrial field of SIMO BLOWER.

Features

1. Can output higher discharge pressure, in the same time provide larger air flow volume, low noise. Can work stably under high temperature conditions
2. In the case of using system base, it is very easy for installation, no need professional direction.
3. Cooling method of bearing, chooses low cost water cooling method or good heat dispersion oil cooling method according to gas temperature and running condition. Or install BOX COOL for very high temperature medium condition to protect fan system operation reliable completely.
4. The motor load can be automatically reduced when airflow resistance is increasing, to prevent motor from destroying.
5. Can satisfy different dust loading conditions from low dust loading to large dust loading, the surface hardness of impeller can reach to HRC60~70 after special processing, greatly extend impeller’s service life.
6. Bearing housing reserves installation place for temperature and vibration sensors, can install easily of fan running monitoring device.
7. The welding line of impeller and main shaft passed ultrasonic flaw detection, ensuring no defect of welding and materials, guarantee strength.
8. Running test and vibration value test for fans is done after finishing manufacturing, ensuring reliable running
9. Various optional components for your selection.

Specifications

Application	Temperature	Normal temperature air
	Temperature	Hot air
	Air composition	Clean air
		Corrosive gas
		Combustible gas
		Light particle materials
Performance	Impeller diameter	250-2000	mm
	Speed of main shaft	≤4000	rpm
	Pressure range	348-15425	Pa
	Flow range	273-81858	m3/h
Structure	Blade	Forward
	Impeller support	SWSI (Single Width, Single Inlet), Impeller overhung.
	Drivetrain	Coupling drivetrain	Can assign
	Lubrication	Oil bath lubrication	Can assign
	Bearing cooling	Air cooling or Circulating Water cooling
System configuration	Motor	SIEMENS, ABB, SIMO, LA…	Can assign
	Impeller	Carbon steel
	Impeller cone (Air Inlet)	Carbon steel
	Case	Carbon steel
	Air damper	Carbon steel
	Main shaft	High-strength carbon structural steel
	Bearing	FAG, SKF, ZWZ, C&U…
	Bearing housing	Cast iron
	Drivetrain	Coupling	Can assign
	Foundation bolt
Optional components	System base frame, Protective screening, Silencer, Inlet & Outlet pipeline compensator, Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument, Lube system, Overhead lube tank.
