Overview

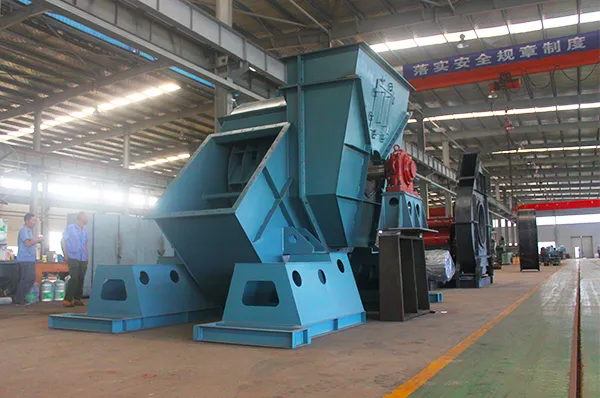

4-10F centrifugal fan, is heavy duty type of 4-10 large air capacity centrifugal fan, the performance characteristics and applications are almost identical with 4-10 large air capacity centrifugal fans, but with larger air flow output, higher pressure. It is mainly used in large industrial systems. Now it has been applied to: boiler, dust removal, desulfurization, denitrification, cement, metallurgy, power generation, gas and materials delivery, Fume exhaust, etc.

Features

1. Can work under higher temperature condition stably, and output larger air flow volume on condition of meeting the pressure’s requirement, with low noise.
2. Adopt detachable design for fan system, greatly reduce the transportation cost.
3. Blades angle passes through optimizing design, higher wear resistant, longer service life.
4. Can satisfy different dust loading conditions from low dust loading to large dust loading, the surface hardness of impeller can reach to HRC60~70 after special processing, greatly extending impeller’s service life more than 3 times.
5. The welding line of impeller and main shaft passed ultrasonic flaw detection, ensuring no defect of welding and materials, guarantee strength.
6. Impeller passed high standard dynamic balancing, ensuring stable running of fan.
7. Trial assembly after finishing production，ensuring no interference between components.
8. We will paint installation numbers for every part, which ensures the fan can be smoothly assembled under the direction of manual.
9. Providing on-site guidance services.

Specifications

Application	Temperature	Normal temperature air
		Hot air
	Air composition	Clean air
		Dusty air
		Powder materials
		Light particle materials
Performance	Impeller diameter	1500~3150	mm
	Speed of main shaft	≤1450	rpm
	Pressure range	2081-9260	Pa
	Flow range	67120-1050384	m3/h
Structure	Blade	Backward
	Impeller support	SWSI (Single Width, Single Inlet), Bearing housing is self-supporting. One bearing on each side supported by independent pedestals.
	Drivetrain	Coupling drivetrain	Can assign
	Lubrication	Oil bath lubrication	Can assign
	Bearing cooling	Circulating Water cooling
		Circulation Oil cooling
System configuration	Motor	SIEMENS, ABB, SIMO, LA…	Can assign
	Impeller	Carbon steel
	Impeller cone (Air Inlet)	Carbon steel
	Case	Carbon steel
	Air damper	Carbon steel
	Main shaft	High-strength carbon structural steel
	Bearing	FAG, SKF, ZWZ, C&U…
	Bearing housing	Cast iron
	Drivetrain	Coupling	Can assign
	Foundation bolt	Carbon steel
Optional components	System base frame, Protective screening, Silencer, Inlet & Outlet pipeline compensator, Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument, Lube system, Overhead lube tank.
