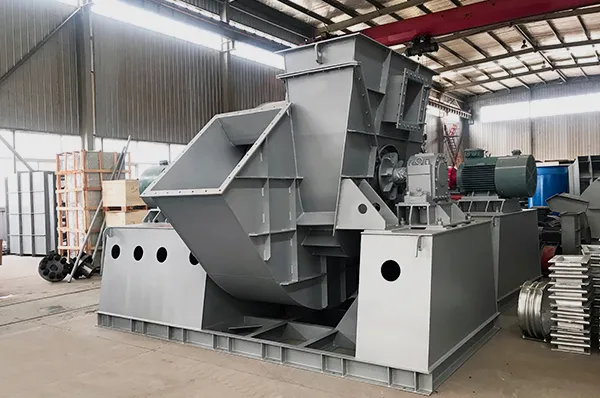

4-10(F) high temperature centrifugal fan

4-10F centrifugal fan, is heavy duty type of 4-10 large air capacity centrifugal fan, the performance characteristics and applications are almost identical with 4-10 large air capacity centrifugal fans, but with larger air flow output, higher pressure. It is mainly used in large industrial systems. Now it has been applied to: boiler, dust removal, desulfurization, denitrification, cement, metallurgy, power generation, gas and materials delivery, Fume exhaust, etc.

1. Can work under higher temperature condition stably, and output larger air flow volume on condition of meeting the pressure’s requirement, with low noise.
2. Adopt detachable design for fan system, greatly reduce the transportation cost.
3. Blades angle passes through optimizing design, higher wear resistant, longer service life.
4. Can satisfy different dust loading conditions from low dust loading to large dust loading, the surface hardness of impeller can reach to HRC60~70 after special processing, greatly extending impeller’s service life more than 3 times.
5. The welding line of impeller and main shaft passed ultrasonic flaw detection, ensuring no defect of welding and materials, guarantee strength.
6. Impeller passed high standard dynamic balancing, ensuring stable running of fan.
7. Trial assembly after finishing production，ensuring no interference between components.
8. We will paint installation numbers for every part, which ensures the fan can be smoothly assembled under the direction of manual.
9. Providing on-site guidance services.
