MQ Serious coal gas boosting fan

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Overview

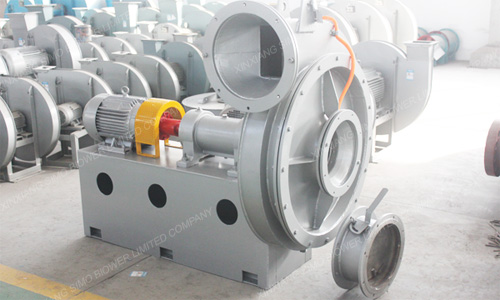

MQ coal gas boosting fan, outputting high pressure, with reliable explosion-proof and leakproof design, is exclusively used in conveying combustible gas at normal temperature or high temperature. It is suitable for metallurgy, chemical, fertilizer and other need transporting combustible gas applications. In circumstances that could satisfy the requirement of pressure, high pressure centrifugal fan can replace cast iron shell high pressure centrifugal fan.

Features

1. High pressure, the medium can be conveyed to remote distance
2. Casing adopts explosion-proof design, good safety
3. Leaking-proof design for the Casing in several locations, sealed well
4. Small volume, compact structure, can be installed in narrow space.
5. Easy for installation, no need professionals to direct.
6. With Small starting current, don’t need motor soft start device for below 7.5kw power.
7. Running test and vibration value test are done for fans after finishing manufacturing, ensuring reliable running.

Specifications

Application	Temperature	Normal temperature air
	Temperature	Hot air
	Air composition	Combustible gas
Performance	Impeller diameter	500-1400	mm
	Speed of main shaft	≤4000	rpm
	Pressure range	15149-3148	Pa
	Flow range	2220-9978	m3/h
Structure	Blade	Forward
	Impeller support	SWSI (Single Width, Single Inlet), Impeller overhung.
	Drivetrain	Coupling drivetrain	Can assign
	Lubrication	Oil bath lubrication	Can assign
	Bearing cooling	Circulating Water cooling
System configuration	Motor	SIEMENS, ABB, SIMO, LA…	Can assign
	Impeller	Carbon steel
	Impeller cone (Air Inlet)	Carbon steel
	Case	Carbon steel
	Air damper	Carbon steel
	Main shaft	High-strength carbon structural steel
	Bearing	FAG, SKF, ZWZ, C&U…
	Bearing housing	Cast iron
	Drivetrain	Coupling	Can assign
	Foundation bolt	Carbon steel
Optional components	System base frame, Protective screening, Silencer, Inlet & Outlet pipeline compensator, Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument, Lube system, Overhead lube tank.
